Adjustable 230V auto recovery over and under voltage protection device with automatic reconnect protective relay protector

Adjustable 230V auto recovery over and under voltage protection device with automatic reconnect protective relay protector

I. Function:

1. Under voltage protection 219V-150V

2. Over voltage protection 221-300-OFF

3.  Delay on Reconnect time (delay on time): 2-255s

4. With big real time voltage screen

5. The Under voltage, over voltage, delay time, recovery time value can be adjusted

Under voltage starting range:219V-150V(default 170V)

Under voltage recovery range:155-220V(default 185V)

Over voltage starting range(V):221-300-OFF (default 275V)

Over voltage recovery range(V): 220-295 (default 245V)

Delay on Reconnect time (delay on time): 2-255s

Mechanical life:More than 10,000 times

Rated voltage: 230V; Frequency: 50Hz

II. Application

Auto Recovery Over Voltage And Under Voltage Protective Device for solar is an automatic protector with over voltage and under voltage protection relay. When the voltage rises over 285V or decreases under 150V, this product can immediately cut off the power to prevent household electrical appliances from being destroyed by fluctuation of voltage. When the voltage drops back to 265V or the voltage rises back to 175V, after about 30 seconds delay,the device will reconnect to bring power back which acts like an automatic circuit breaker with over and under voltage function.

III. HC Electric Advantages

1. We manufacture the key component: Magnetic Latching Relay

2. We use 10K Varistor,Can absorb lightning surge and circuit surge current, if the varistor is not installed, the components will be destroyed.

3. Voltage Reduction Safety Standard Capacitor: Specially customized

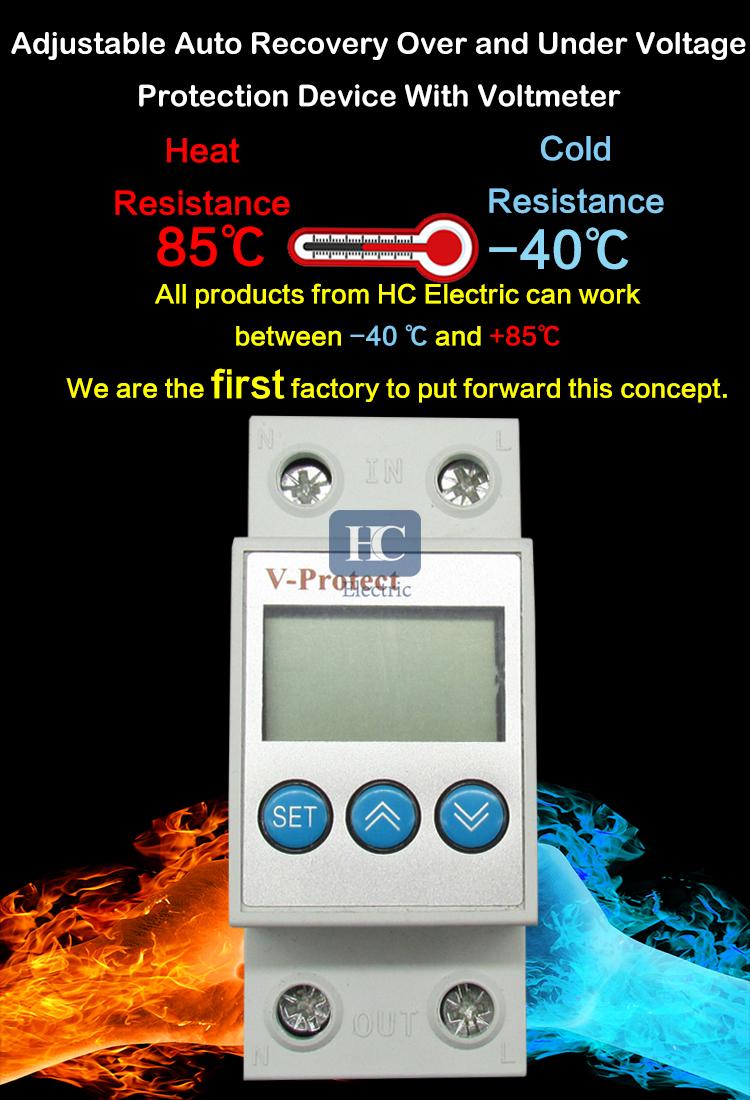

4. Imported LM224 Chip. Make sure the device can work between -40℃ and +85℃

5. Circuit Board Conformal Coating(Salt-spray resistant,Waterproof,Anti Mildew)

6. Silver Contact Area 10% bigger than Other brand

7. -40-85℃ Testing Environment

8. Single Phase 440V Voltage Critical Testing
