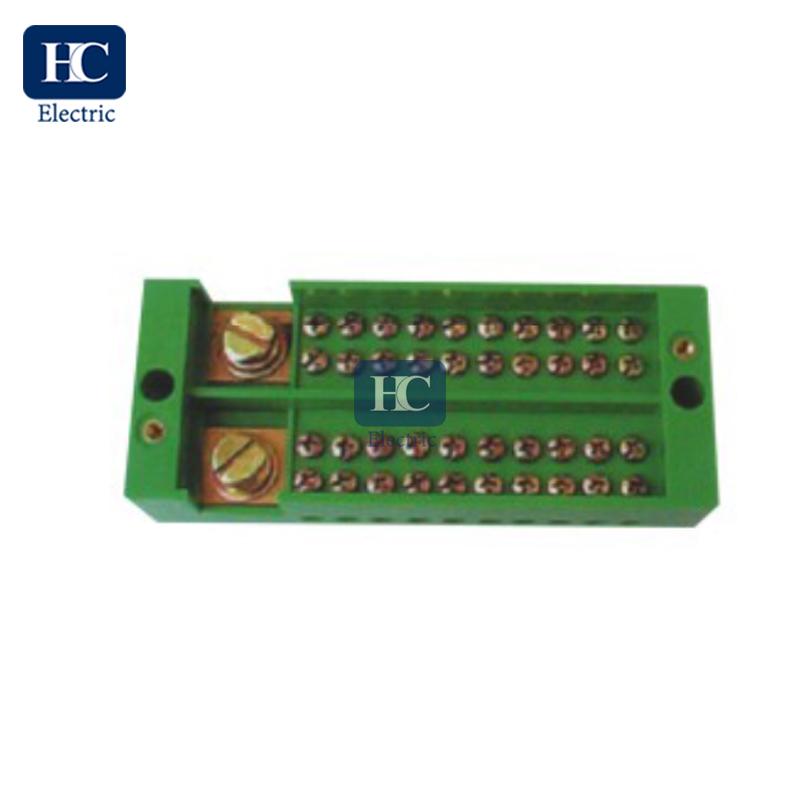

Energy Measuring Terminal Block for Metering Box FJ6/JHD-5 - 副本

General

In order to improve residential electricity consumption condition, our company develops FJ6/JHD series terminal block. This kind of terminal block enables the operation to be more convenient, and also guarantees reliable connection and finally reaches the aim of safety in utilizing electric energy. This product get high appreciation from the energy measuring operators one-meter and standardization of energy measuring devices as well as standard management. This product is also honored as national high quality technological products and are recommended for application by national electric power bureau.

Application

Application of this terminal block enables house service wire to be separated from meter service wire which solves the problem of parallel connection. Terminal block cover can be sealed to prevent electricity theft. Neutral line terminal block can e earthed repeatedly. It is conformity with the special sealed principle of one-household one-meter. The products are applied in one household one meter electric energy metering box.

Structure features

This series of terminal block adopt high-molecular polycarbonate material imported from America. It has advantages of high impact resistance, moisture resistance, favorable insulation, aging resistance, flame retardant, high temperature resistant, etc. The binding screw adopts compound recess, which is suitable for flat head screwdriver and crossed screwdriver. The products are popular due to compact volume, large capacity, high withstand voltage, reasonable structure and elegant appearance.

Main Technical parameters

1.Insulation voltage:660V 50HZ(60HZ)

2.Rated current 30A(40A) outlet of each circuit

3.Power frequency withstand voltage: 3000V/1min

4.Operating temperature: -40-+120 ℃ continuously

5.Insulation resistance among terminals: >40MΩ
