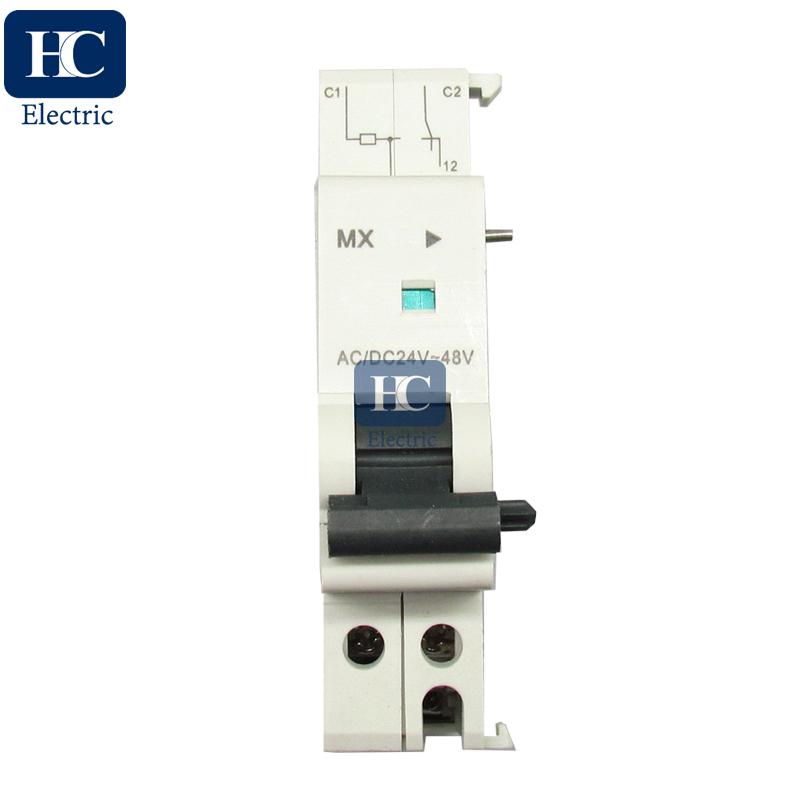

24V 220V MX+OF Shunt trip release with Auxiliary Switch for Schneider C65 Miniature Circuit Breakers MCB accessories
| OF | Auxiliary Contact |
| SD | Alarm Contact |
| MX+OF | Shunt Trip Release+Auxiliary Contact |
| MX | Shunt Trip Release |
| MV+MN | Over-Voltage/ Under-Voltage Release |
| MN | Under-Voltage Release |
| Product or component type | Shunt Trip release with Auxiliary contact |
| Device Short Name | MX+OF |
| Signal contacts composition | 1 Normal Open and 1 Normal Close |
| [Ie] rated operational current | 3A at 415V AC |
| 6a at <=240V AC | |
| [Uc] control circuit Voltage | 100...415 V AC 50/60 Hz |
| 110...130 V DC | |
| 9mm pitches | 2 |
| Product compatibility |
Schneider C65 |
| Complementary | |
| Range compatibility | |
| Mounting mode | Fixed |
| Mounting support | 35mm symmetrical DIN rail |
| Height | 82.5mm |
| Width | 18mm |
| Depth | 73.5mm |
| Product Weight | 65g |
| Colour | White |
| Connections-Terminals | Screw clamp terminal bottom 2 cables 1.5mm2 flexible |
| Wire stripping length | 9 mm bottom |
| Tightening torque | 1 N.m bottom |
| Environment | |
| Standards | EN/IEC 60947-5-1 |
| Relavtive Humidity | 95% at 55℃ |
| Ambient air temperature for operation | -25...50℃ |
| Ambient air temperature for storage | -40...85℃ |
| Contractual Warranty | |
| Warranty period | 18 months |
MX+OF Shunt Trip Release Type Selection
MX:Only Shunt Trip Release Function, no Auxiliary Feedback.
MX+OF Active: Shunt Trip Release+Auxiliary,the auxiliary feedback has power,the feedback voltage has the same voltage with the Trip Voltage
MX+OF Passive: Shunt Trip Release+Auxiliary,the auxiliary feedback has no power,the feedback is a pair of common Normal Open Point and Normal Close Point
OF:Auxiliary,can provdie “Tripping†“Switching onâ€States information of MCB
SD: Alarming when MCB is tripped
