HC Electric has a range of modular contactors and relays from 16A to 63 A designed for multiple applications in a variety of industries.
As building automation becomes increasingly popular the need for high quality affordable modular contactors is increasing. HC electric meets this challenge with its BZ Modular Contactor range. The HC electric range of modular contactors can be used to switch and control lighting systems heating ventilation pumps heat pumps or air conditioning, insert card for power in hotel and other building automation requirements.
AC Household Contactors Advantages
1. PC flame-retardant shell, high temperature resistance, corrosion resistance
2. Precision mould, excellent quality
3. High quality silver contacts, better conductivity
4. High quality copper coil, good oxidation resistance and long service life
5. High quality iron core, safe, stable and durable
6. Safe and reliable long life
7. Easy and convenient to install
Rating
|
Model |
Utilization category |
UI(V) |
Ue(V) |
Conventional heating current |
Ie(A) |
Controlled power(KW) |
|
HCC1-20 |
AC-1 AC-7a |
500 |
230 |
20 |
20 |
4 |
|
HCC1-20 |
AC-7b |
500 |
230 |
20 |
9 |
1.2 |
|
HCC1-25 |
AC-1 AC-7a |
500 |
230 |
20 |
20 |
4 |
|
HCC1-40 |
AC-1 AC-7a |
500 |
400 |
40 |
40 |
40 |
|
HCC1-63 |
AC-1 AC-7a |
500 |
400 |
63 |
63 |
40 |
| Main | |

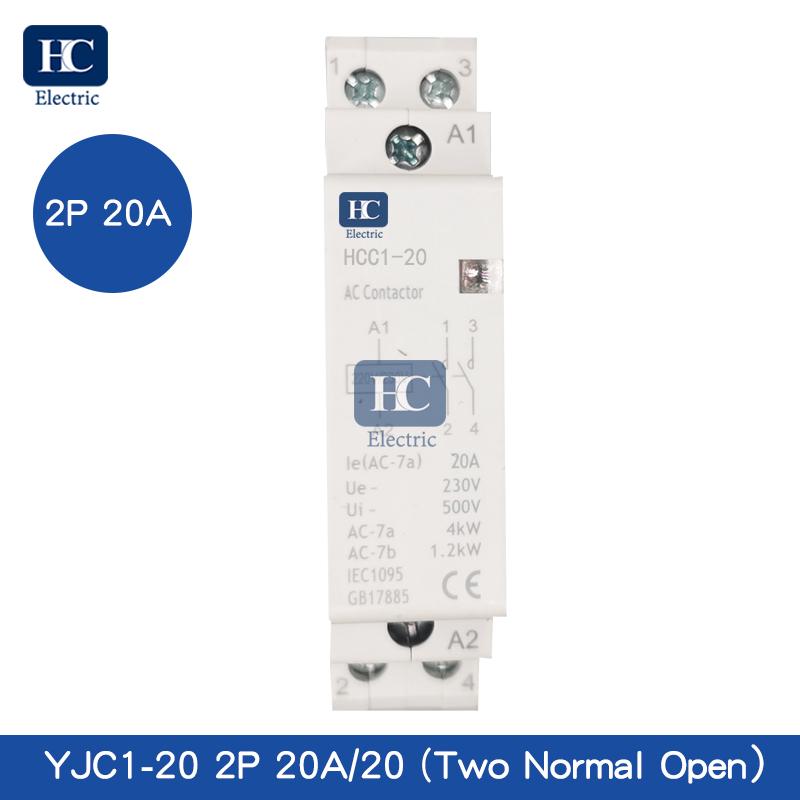

| product name | HCC1 |
| product or component type | Modular contactor |
| contactor application | Heating |
| Motor control | |
| Lighting | |
| Interpolation card to admission power in Hotel | |
| Complementary | |
| utilisation category | AC-7A |
| AC-7B | |
| poles description | 2P |
| power pole contact composition | 2 NO |
| [Ue] rated operational voltage | <= 250 V AC |
| [Ie] rated operational current | 8 A AC-7B |
| 20 A AC-7A | |
| operating position | 30°/vertical |
| control circuit type | AC 50 Hz |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ith] conventional free air thermal current | 20 A at <= 50 °C for power circuit |
| Irms rated making capacity | 62.5 A at 400 V AC for power circuit conforming to IEC 61095 |
| rated breaking capacity | 62.5 A at 400 V for power circuit conforming to IEC 61095 |
| [Icw] rated short-time withstand current | 200 A <= 40 °C 10 s power circuit |
| 62.5 A <= 40 °C 30 s power circuit | |
| associated fuse rating | 20A gL at <= 440 V for power circuit |
| average impedance | 2.5 mOhm at 50 Hz - Ith 25 A for power circuit |
| [Ui] rated insulation voltage | 500 V conforming to IEC 61095 |
| 500 V conforming to VDE 0110 | |
| electrical durability | AC-7A : 100000 cycles |
| AC-7B : 100000 cycles | |
| power dissipation per pole | 0.65 W |
| control type | Remote control |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| standards | IEC 60947-5 |
| IEC 61095 | |
| connections - terminals |
Control circuit : screw clamp terminals 1 cable(s) 2.5 mm² - cable stiffness: flexible - without cable end Control circuit : screw clamp terminals 2 cable(s) 2.5 mm² - cable stiffness: flexible - without cable end |
| tightening torque | Control circuit : 0.8 N.m - on screw clamp terminals |
| Power circuit : 0.8 N.m - on screw clamp terminals | |
| operating time | 10...25 ms opening |
| 10...30 ms closing | |
| mechanical durability | 1000000 cycles |
| operating rate | 300 cyc/h at <= 50 °C |
| control circuit voltage limits | 0.2...0.75 Uc at <= 50 °C drop-out 50 Hz |
| 0.85...1.1 Uc at <= 50 °C operational 50 Hz | |
| hold-in power consumption in VA | 3.8 VA at 20 °C 50 Hz |
| heat dissipation | 1.3 W at 50/60 Hz |
| Environment | |
| IP degree of protection | IP20 conforming to VDE 0106 |
| IP40 in enclosure conforming to VDE 0106 | |
| protective treatment | TC |
| ambient air temperature for operation | -5...50 °C |
| ambient air temperature for storage | -40...70 °C |
| operating altitude | <= 3000 m |
| mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz |
| Shocks contactor open 10 Gn for 11 ms | |
| Shocks contactor closed 15 Gn for 11 ms | |
| Vibrations contactor closed 3 Gn, 5...300 Hz | |
| total number of 18 mm modules | 1 |
| height | 85 mm |
| width | 18 mm |
| depth | 65 mm |
| product weight | 0.11 kg |
| quantity per set | Set of 6 |
| colour | White |
| Contractual warranty | |
| Warranty period | 18 months |
